Load libraries.
suppressPackageStartupMessages({
library(SingleCellExperiment)
library(edgeR)
library(tidyverse)
library(ggplot2)
library(Seurat)
library(glmGamPoi)
library(dittoSeq)
library(here)
library(clustree)
library(patchwork)
library(AnnotationDbi)
library(org.Hs.eg.db)
library(glue)
library(speckle)
library(tidyHeatmap)
library(paletteer)
library(dsb)
library(ggh4x)
library(readxl)
library(gt)
})
source(here("code/utility.R"))Load data
files <- list.files(here("data/C133_Neeland_merged"),
pattern = "C133_Neeland_full_clean.*(t_cells|other_cells)_annotated_diet.SEU.rds",
full.names = TRUE)
seuLst <- lapply(files, function(f) readRDS(f))
seu <- merge(seuLst[[1]],
y = seuLst[[2]])
seuAn object of class Seurat
19973 features across 29198 samples within 1 assay
Active assay: RNA (19973 features, 0 variable features) used (Mb) gc trigger (Mb) limit (Mb) max used (Mb)
Ncells 10081079 538.4 18292021 976.9 NA 13248671 707.6
Vcells 135391886 1033.0 371693820 2835.8 65536 325547687 2483.8Prepare figure panels
seu@meta.data %>%
data.frame %>%
dplyr::select(ann_level_1) %>%
group_by(ann_level_1) %>%
count() %>%
arrange(-n) %>%
dplyr::rename(cell = ann_level_1) -> cell_freq
cell_freq# A tibble: 14 × 2
# Groups: cell [14]
cell n
<chr> <int>
1 CD8 T cells 7268
2 CD4 T cells 5482
3 DC cells 4094
4 B cells 3769
5 monocytes 3225
6 epithelial cells 1847
7 innate lymphocyte 1481
8 NK cells 695
9 neutrophils 477
10 proliferating T/NK 250
11 gamma delta T cells 244
12 dividing innate cells 176
13 mast cells 99
14 NK-T cells 91files <- list.files(here("data/intermediate_objects"),
pattern = ".*all_samples",
full.names = TRUE)
files <- files[!str_detect(files, "macro")]
cutoff <- 0.05
cont_name <- "CF.NO_MODvNON_CF.CTRL"
lfc_cutoff <- 0
suffix <- ".all_samples.fit.rds"
get_deg_data(files, cont_name, cell_freq, treat_lfc = lfc_cutoff,
suffix = suffix) -> datZero log2-FC threshold detected. Switch to glmLRT() instead.
Zero log2-FC threshold detected. Switch to glmLRT() instead.
Zero log2-FC threshold detected. Switch to glmLRT() instead. bind_rows(lapply(files, function(f){
deg_results <- readRDS(f)
lrt <- glmLRT(deg_results$fit,
contrast = deg_results$contr[,cont_name])
tmp <- cbind(summary(decideTests(lrt, p.value = cutoff)) %>% data.frame,
cell = str_extract(basename(f), "^[^.]+"))
tmp
})) -> dat_degdat_deg %>%
left_join(cell_freq) -> dat_deg
pal_dt <- c(paletteer::paletteer_d("RColorBrewer::Set1")[2:1], "grey")
dat_deg %>%
dplyr::filter(Var1 != "NotSig") %>%
ggplot(aes(x = fct_reorder(cell, -n), y = Freq, fill = Var1)) +
geom_col(position = "dodge") +
scale_fill_manual(values = pal_dt) +
theme_classic() +
theme(legend.position = "top") +
geom_text(aes(label = Freq),
position = position_dodge(width = 0.9),
vjust = -0.5,
size = 2.5) +
labs(x = "Cell Type",
y = "No. DEG (FDR < 0.05)",
fill = "Direction") -> deg_barplot

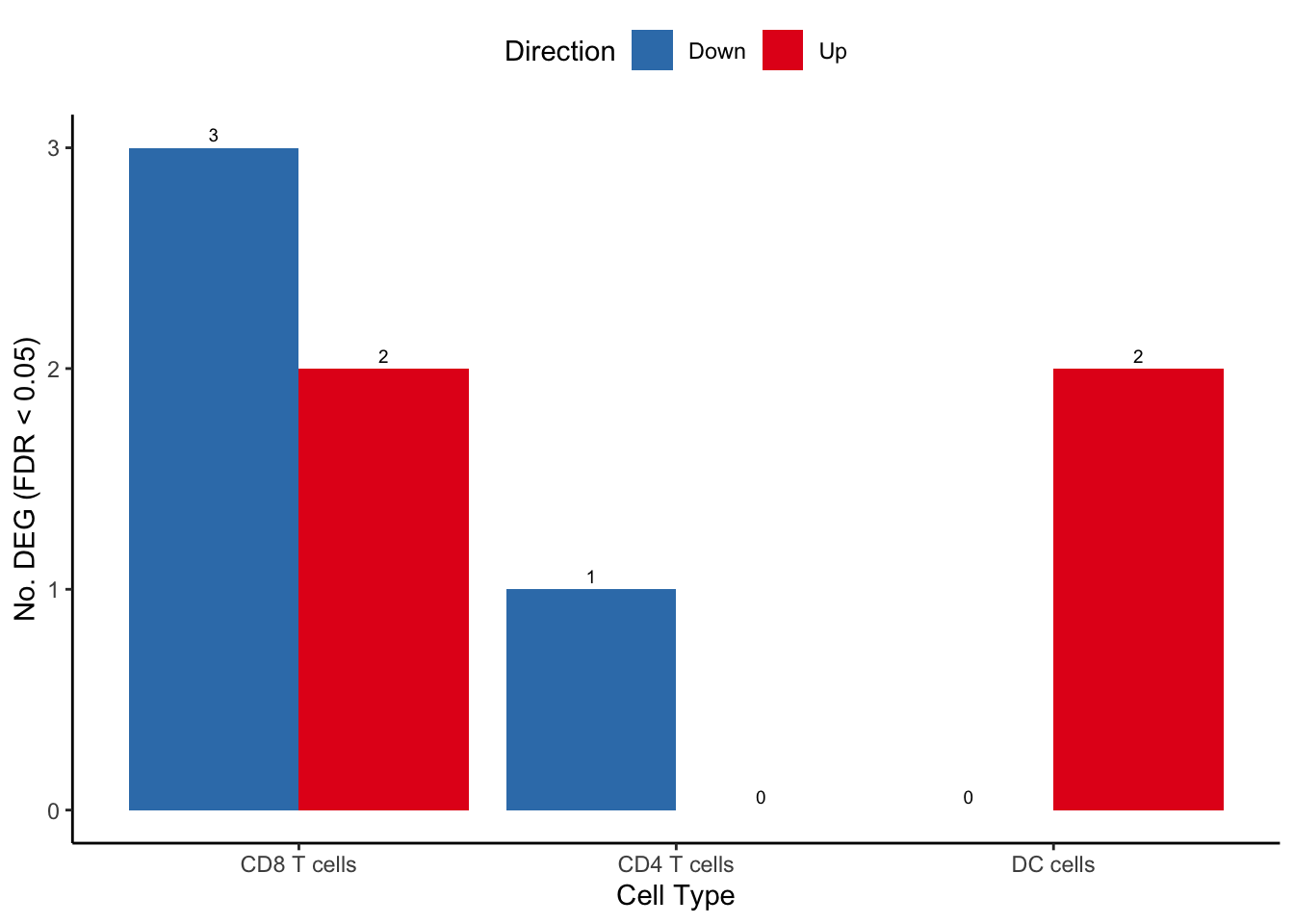

deg_barplot
| Version | Author | Date |
|---|---|---|
| 72ac736 | Jovana Maksimovic | 2025-09-10 |
get_deg_data(files, cont_name, cell_freq, treat_lfc = lfc_cutoff,
suffix = suffix, cutoff = 1) -> dat_allZero log2-FC threshold detected. Switch to glmLRT() instead.
Zero log2-FC threshold detected. Switch to glmLRT() instead.
Zero log2-FC threshold detected. Switch to glmLRT() instead. dat_all %>%
left_join(cell_freq) %>%
mutate(Direction = as.factor(ifelse(sig == -1, "Down",
ifelse(sig == 1, "Up", "N.S."))),
cell = fct_reorder(cell, -n)) -> dat_all
ggplot(dat_all, aes(x = logFC, y = -log10(FDR), colour = Direction)) +
geom_point(size = 0.5) +
facet_wrap(~cell, ncol = 4) +
theme_classic() +
scale_color_manual(values = pal_dt[c(1,3,2)]) +
ggrepel::geom_text_repel(data = dat_all[dat_all$sig != 0,],
aes(label = gene), size = 2) -> volc_plot

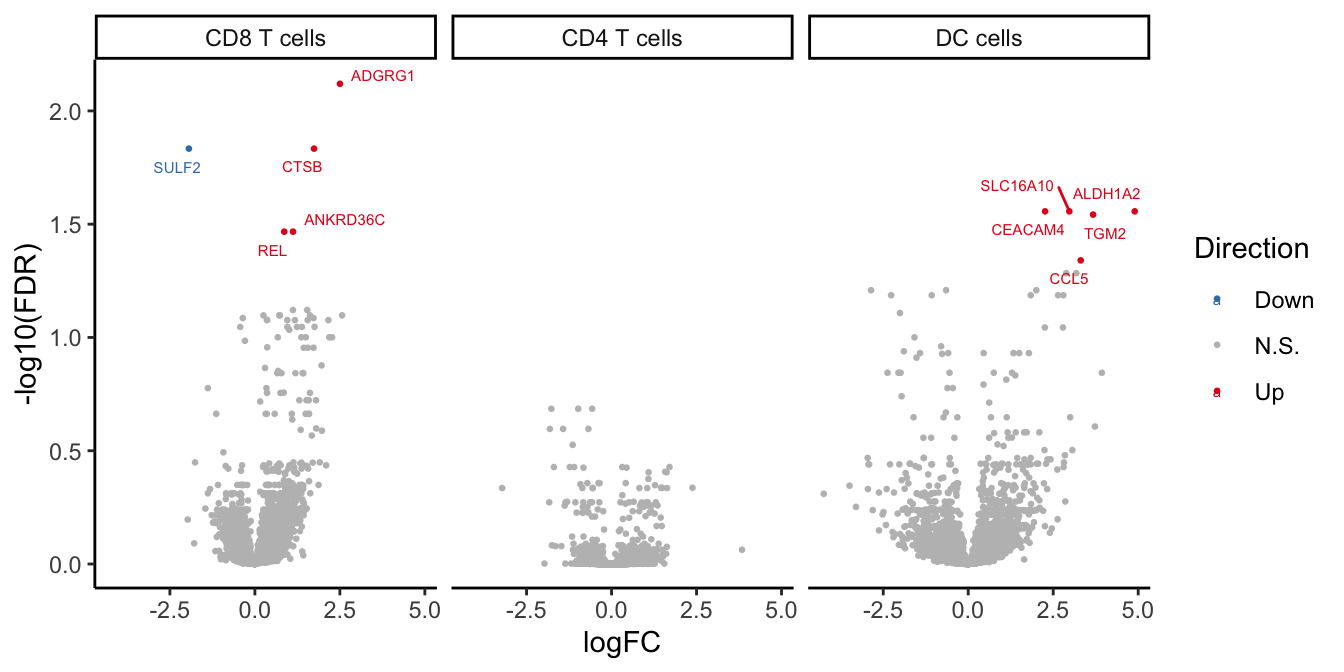

volc_plot
| Version | Author | Date |
|---|---|---|
| 72ac736 | Jovana Maksimovic | 2025-09-10 |
dat_all %>%
dplyr::select(-sig, -n, -Direction) %>%
dplyr::filter(FDR < cutoff) %>%
group_by(cell) %>%
arrange(FDR, .by_group = TRUE) %>%
gt() %>%
tab_header(title = "Differentially expressed genes by cell type",
subtitle = cont_name) %>%
tab_style(cell_text(size = px(10)),
locations = list(cells_body())) %>%
tab_style(cell_text(size = px(12), weight = "bold"),
locations = list(cells_column_labels())) %>%
tab_style(cell_text(size = px(12), weight = "bold"),
locations = list(cells_row_groups())) -> tab
tab| Differentially expressed genes by cell type | ||
| CF.NO_MODvNON_CF.CTRL | ||
| gene | logFC | FDR |
|---|---|---|
| CD8 T cells | ||
| ADGRG1 | 2.5021012 | 0.00758679 |
| SULF2 | -1.9413497 | 0.01467086 |
| CTSB | 1.7399768 | 0.01467086 |
| REL | 0.8640961 | 0.03411823 |
| ANKRD36C | 1.1218820 | 0.03411823 |
| DC cells | ||
| CEACAM4 | 2.2610736 | 0.02775101 |
| SLC16A10 | 2.9741874 | 0.02775101 |
| ALDH1A2 | 4.8973876 | 0.02775101 |
| TGM2 | 3.6728039 | 0.02868435 |
| CCL5 | 3.3089485 | 0.04566559 |

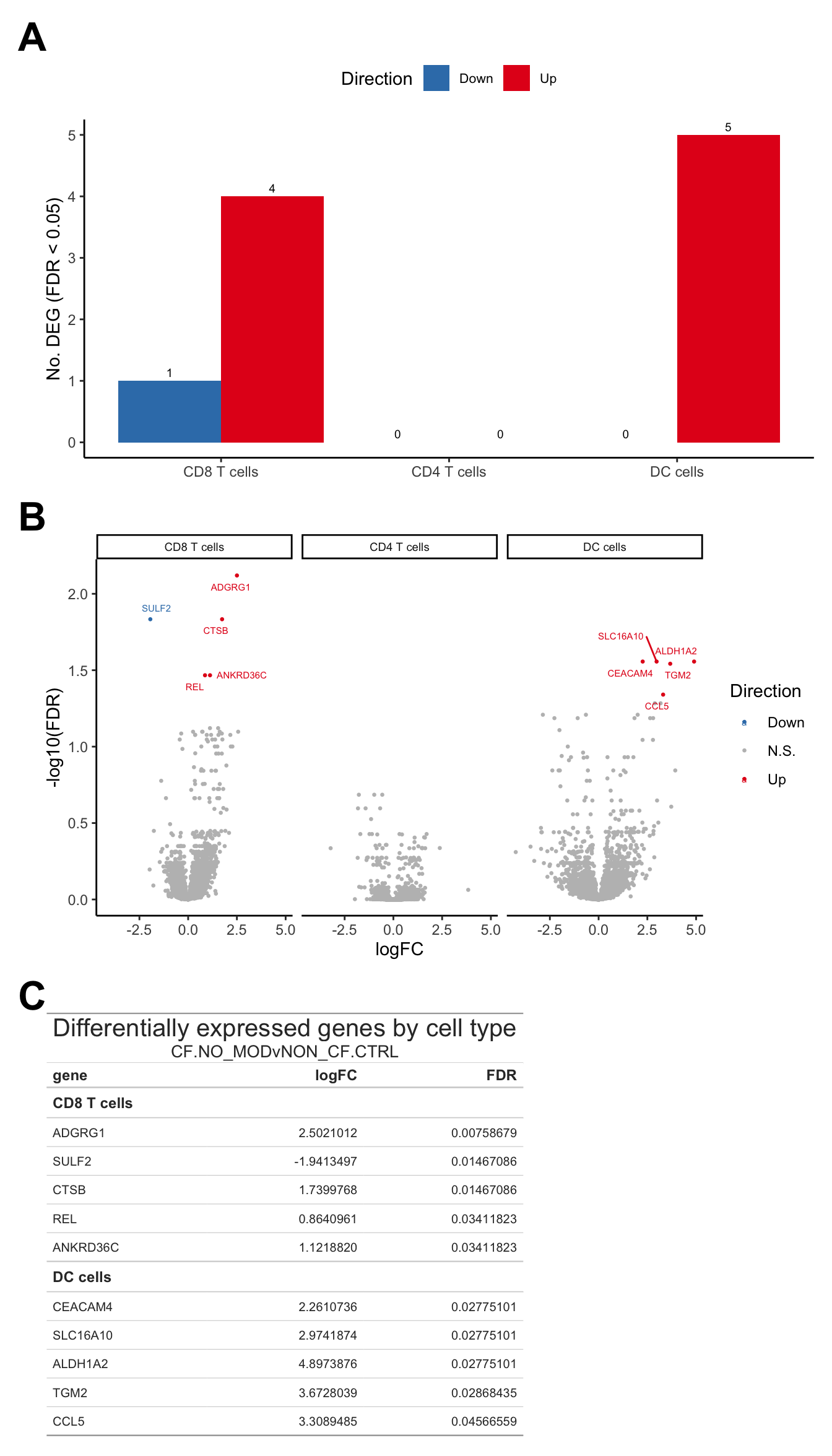

Supplementary Figure 3
layout <- "
A
B
C
"
(wrap_elements(deg_barplot + theme(axis.title.x = element_blank(),
legend.text = element_text(size = 8),
plot.margin = margin(rep(0,4))))) +
wrap_elements(volc_plot + theme(strip.text = element_text(size = 7),
plot.margin = margin(rep(0,4)))) +
wrap_table(tab, panel = "full") +
plot_layout(design = layout) +
plot_annotation(tag_levels = "A") &
theme(plot.tag = element_text(size = 24,
face = "bold",
family = "arial"))
| Version | Author | Date |
|---|---|---|
| 72ac736 | Jovana Maksimovic | 2025-09-10 |
Prepare figure panels
seu@meta.data %>%
data.frame %>%
dplyr::select(ann_level_1) %>%
group_by(ann_level_1) %>%
count() %>%
arrange(-n) %>%
dplyr::rename(cell = ann_level_1) -> cell_freq
cell_freq# A tibble: 14 × 2
# Groups: cell [14]
cell n
<chr> <int>
1 CD8 T cells 7268
2 CD4 T cells 5482
3 DC cells 4094
4 B cells 3769
5 monocytes 3225
6 epithelial cells 1847
7 innate lymphocyte 1481
8 NK cells 695
9 neutrophils 477
10 proliferating T/NK 250
11 gamma delta T cells 244
12 dividing innate cells 176
13 mast cells 99
14 NK-T cells 91files <- list.files(here("data/intermediate_objects"),
pattern = ".*CF_samples",
full.names = TRUE)
files <- files[!str_detect(files, "macro")]
cutoff <- 0.05
cont_name <- "CF.NO_MOD.SvCF.NO_MOD.M"
lfc_cutoff <- 0
suffix <- ".CF_samples.fit.rds"
get_deg_data(files, cont_name, cell_freq, treat_lfc = lfc_cutoff,
suffix = suffix) -> datZero log2-FC threshold detected. Switch to glmLRT() instead.
Zero log2-FC threshold detected. Switch to glmLRT() instead.
Zero log2-FC threshold detected. Switch to glmLRT() instead. bind_rows(lapply(files, function(f){
deg_results <- readRDS(f)
lrt <- glmLRT(deg_results$fit,
contrast = deg_results$contr[,cont_name])
tmp <- cbind(summary(decideTests(lrt, p.value = cutoff)) %>% data.frame,
cell = str_extract(basename(f), "^[^.]+"))
tmp
})) -> dat_degdat_deg %>%
left_join(cell_freq) -> dat_deg
pal_dt <- c(paletteer::paletteer_d("RColorBrewer::Set1")[2:1], "grey")

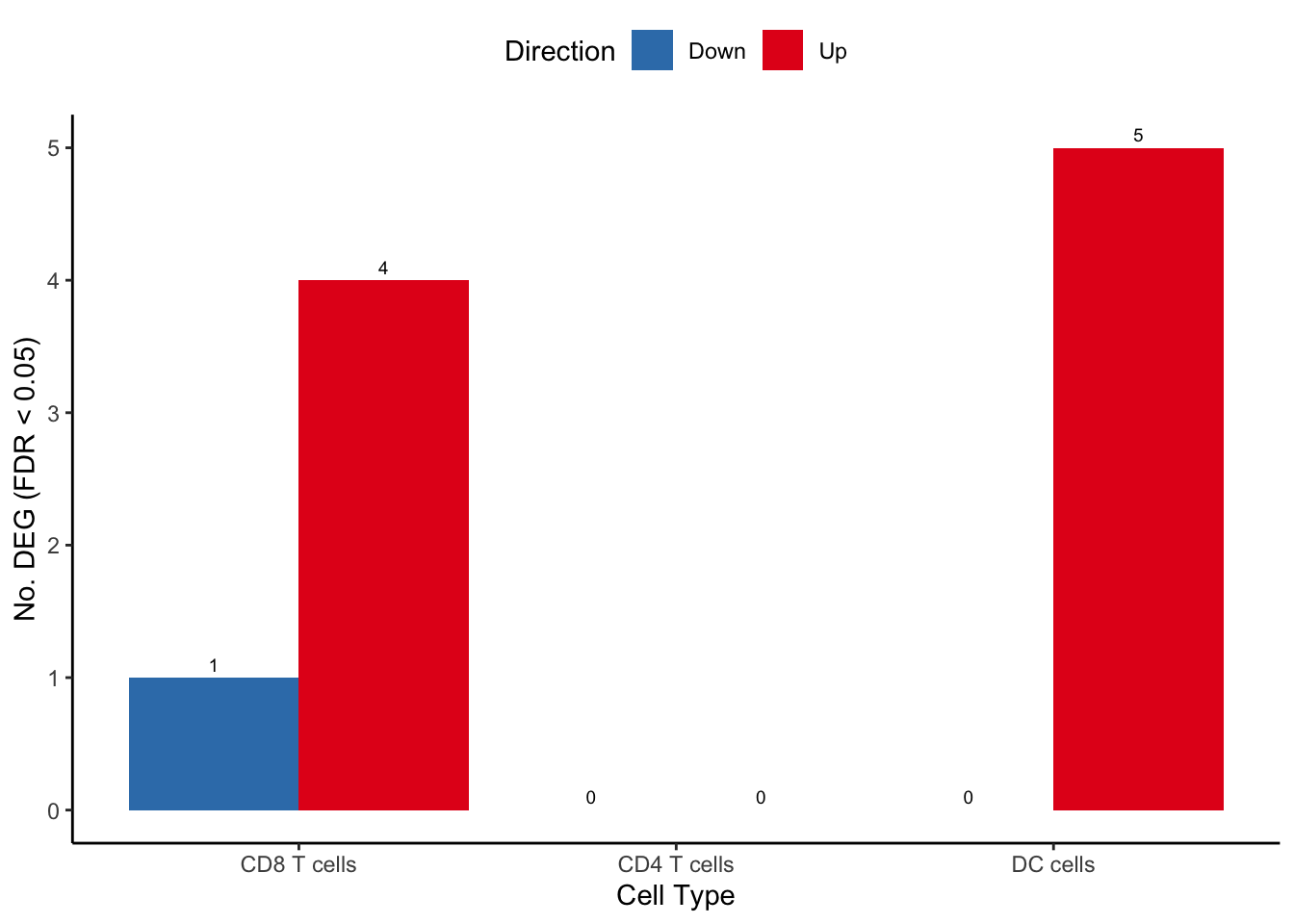

dat_deg %>%
dplyr::filter(Var1 != "NotSig") %>%
ggplot(aes(x = fct_reorder(cell, -n), y = Freq, fill = Var1)) +
geom_col(position = "dodge") +
scale_fill_manual(values = pal_dt) +
theme_classic() +
theme(legend.position = "top") +
geom_text(aes(label = Freq),
position = position_dodge(width = 0.9),
vjust = -0.5,
size = 2.5) +
labs(x = "Cell Type",
y = "No. DEG (FDR < 0.05)",
fill = "Direction") -> deg_barplot
deg_barplot
| Version | Author | Date |
|---|---|---|
| 72ac736 | Jovana Maksimovic | 2025-09-10 |
get_deg_data(files, cont_name, cell_freq, treat_lfc = lfc_cutoff,
suffix = suffix, cutoff = 1) -> dat_allZero log2-FC threshold detected. Switch to glmLRT() instead.
Zero log2-FC threshold detected. Switch to glmLRT() instead.
Zero log2-FC threshold detected. Switch to glmLRT() instead. dat_all %>%
left_join(cell_freq) %>%
mutate(Direction = as.factor(ifelse(sig == -1, "Down",
ifelse(sig == 1, "Up", "N.S."))),
cell = fct_reorder(cell, -n)) -> dat_all

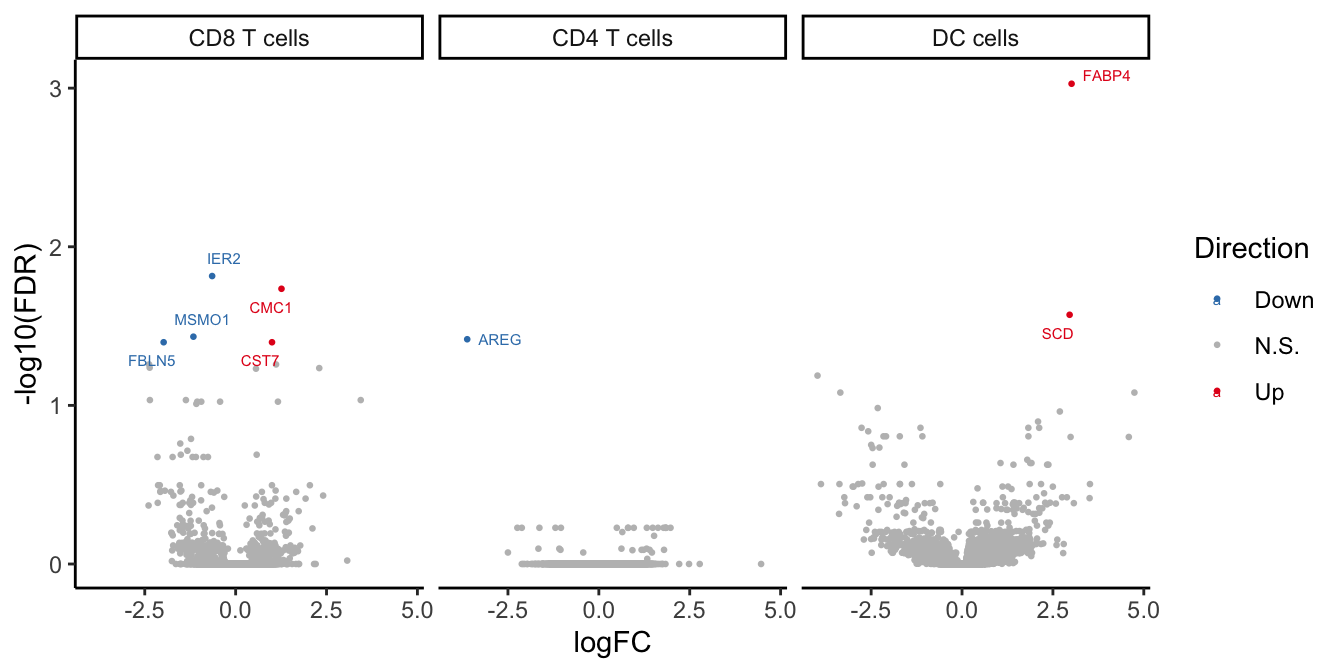

ggplot(dat_all, aes(x = logFC, y = -log10(FDR), colour = Direction)) +
geom_point(size = 0.5) +
facet_wrap(~cell, ncol = 4) +
theme_classic() +
scale_color_manual(values = pal_dt[c(1,3,2)]) +
ggrepel::geom_text_repel(data = dat_all[dat_all$sig != 0,],
aes(label = gene), size = 2) -> volc_plot
volc_plot
| Version | Author | Date |
|---|---|---|
| 72ac736 | Jovana Maksimovic | 2025-09-10 |
dat_all %>%
dplyr::select(-sig, -n, -Direction) %>%
dplyr::filter(FDR < cutoff) %>%
group_by(cell) %>%
arrange(FDR, .by_group = TRUE) %>%
gt() %>%
tab_header(title = "Differentially expressed genes by cell type",
subtitle = cont_name) %>%
tab_style(cell_text(size = px(10)),
locations = list(cells_body())) %>%
tab_style(cell_text(size = px(12), weight = "bold"),
locations = list(cells_column_labels())) %>%
tab_style(cell_text(size = px(12), weight = "bold"),
locations = list(cells_row_groups())) -> tab
tab| Differentially expressed genes by cell type | ||
| CF.NO_MOD.SvCF.NO_MOD.M | ||
| gene | logFC | FDR |
|---|---|---|
| CD8 T cells | ||
| IER2 | -0.6465572 | 0.0152957508 |
| CMC1 | 1.2609872 | 0.0184005852 |
| MSMO1 | -1.1619299 | 0.0368874786 |
| FBLN5 | -1.9805997 | 0.0399874695 |
| CST7 | 1.0002086 | 0.0399874695 |
| CD4 T cells | ||
| AREG | -3.6207178 | 0.0382842050 |
| DC cells | ||
| FABP4 | 3.0135376 | 0.0009380894 |
| SCD | 2.9594586 | 0.0268390379 |

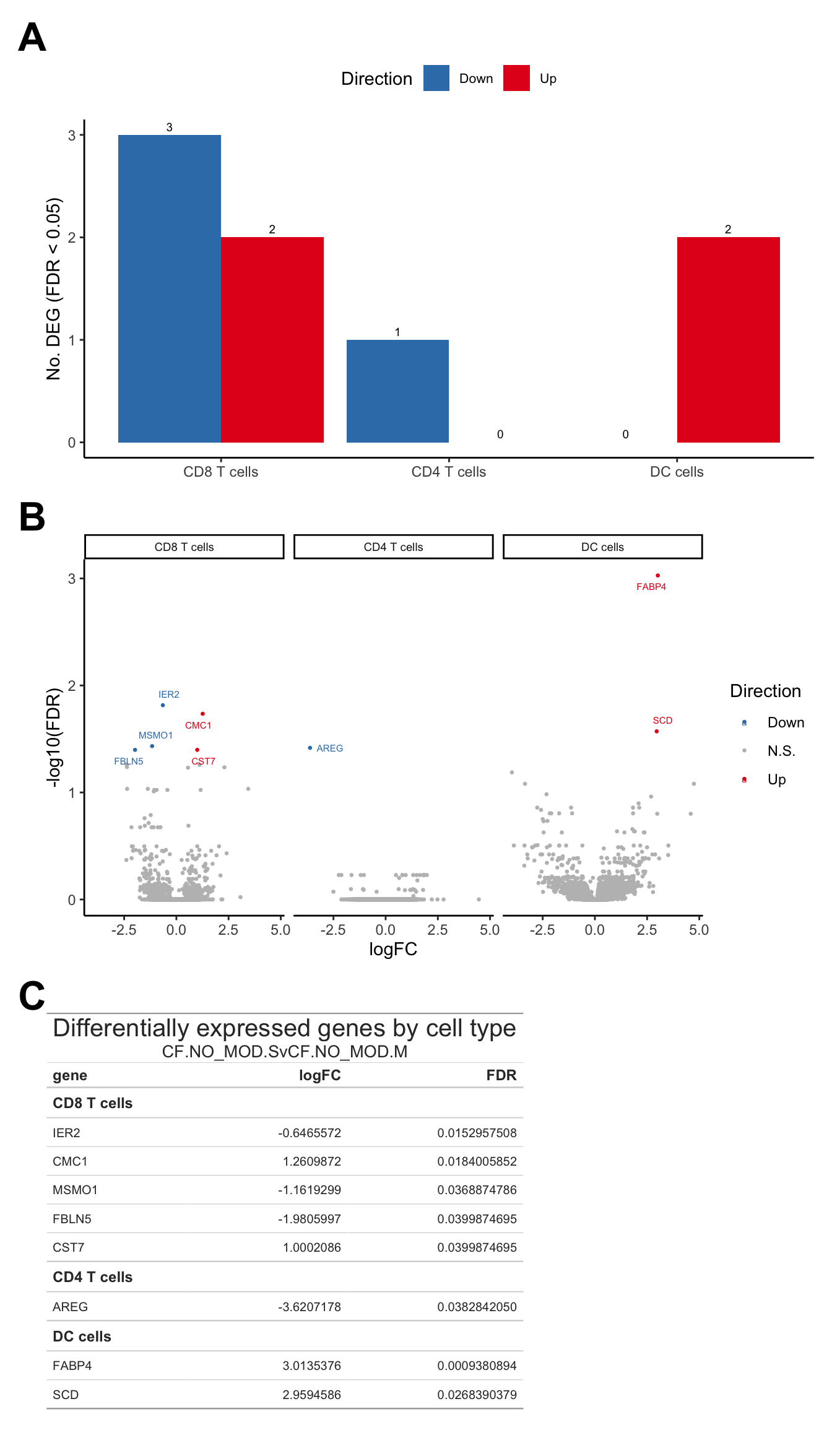

Supplementary Figure 5
layout <- "
A
B
C
"
(wrap_elements(deg_barplot + theme(axis.title.x = element_blank(),
legend.text = element_text(size = 8),
plot.margin = margin(rep(0,4))))) +
wrap_elements(volc_plot + theme(strip.text = element_text(size = 7),
plot.margin = margin(rep(0,4)))) +
wrap_table(tab, panel = "full") +
plot_layout(design = layout) +
plot_annotation(tag_levels = "A") &
theme(plot.tag = element_text(size = 24,
face = "bold",
family = "arial"))
| Version | Author | Date |
|---|---|---|
| 72ac736 | Jovana Maksimovic | 2025-09-10 |
Prepare figure panels
file <- here("data",
"intermediate_objects",
"macrophages.all_samples.fit.rds")
deg_results <- readRDS(file = file)
contr <- deg_results$contr[,1:2]
lapply(1:ncol(contr), function(i) {
lrt <- glmLRT(deg_results$fit, contrast = contr[,i])
topTags(lrt, n = Inf) %>%
data.frame %>%
rownames_to_column(var = "Symbol") %>%
dplyr::arrange(Symbol) %>%
dplyr::rename_with(~ paste0(.x, ".", i))
}) %>% bind_cols -> all_lrtall_lrt %>%
mutate(IVA = ifelse(FDR.1 < 0.05 & FDR.2 < 0.05, "#FF6B6B",
ifelse(FDR.1 < 0.05 & FDR.2 >= 0.05, "#CC8E00",
ifelse(FDR.1 >= 0.05 & FDR.2 < 0.05, "#20A4A4",
"lightgrey")))) -> all_lrt

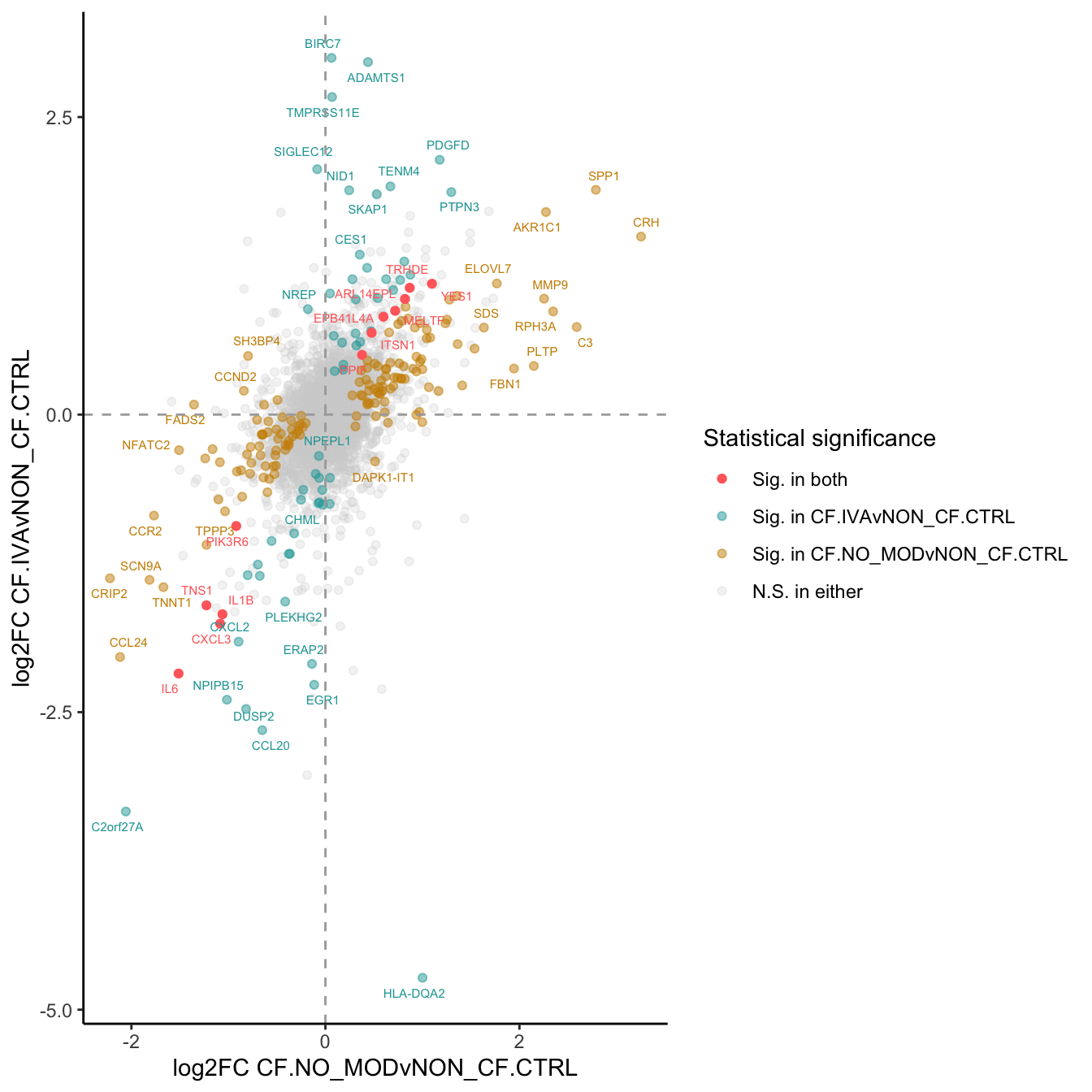

ggplot(all_lrt, aes(x = logFC.1,
y = logFC.2)) +
geom_point(data = subset(all_lrt, IVA %in% "lightgrey"),
aes(colour = "lightgrey"),
alpha = 0.25) +
geom_point(data = subset(all_lrt, IVA %in% "#20A4A4"),
aes(colour = "#20A4A4"),
alpha = 0.5) +
geom_point(data = subset(all_lrt, IVA %in% "#CC8E00"),
aes(colour = "#CC8E00"),
alpha = 0.5) +
geom_point(data = subset(all_lrt, IVA %in% "#FF6B6B"),
aes(colour = "#FF6B6B")) +
ggrepel::geom_text_repel(data = subset(all_lrt, (IVA %in% "#20A4A4")),
aes(x = logFC.1, y = logFC.2,
label = Symbol.1),
size = 2, colour = "#20A4A4", max.overlaps = 5) +
ggrepel::geom_text_repel(data = subset(all_lrt, (IVA %in% "#CC8E00")),
aes(x = logFC.1, y = logFC.2,
label = Symbol.1),
size = 2, colour = "#CC8E00", max.overlaps = 5) +
ggrepel::geom_text_repel(data = subset(all_lrt, (IVA %in% "#FF6B6B")),
aes(x = logFC.1, y = logFC.2,
label = Symbol.1),
size = 2, colour = "#FF6B6B", max.overlaps = Inf) +
geom_hline(yintercept = 0, linetype = "dashed", colour = "darkgrey") +
geom_vline(xintercept = 0, linetype = "dashed", colour = "darkgrey") +
labs(x = "log2FC CF.NO_MODvNON_CF.CTRL",
y = "log2FC CF.IVAvNON_CF.CTRL") +
scale_colour_identity(guide = "legend",
breaks = c("#FF6B6B", "#20A4A4", "#CC8E00","lightgrey"),
labels = c("Sig. in both",
"Sig. in CF.IVAvNON_CF.CTRL",
"Sig. in CF.NO_MODvNON_CF.CTRL",
"N.S. in either"),
name = "Statistical significance") +
theme_classic() +
theme(legend.position = "right",
legend.direction = "vertical") -> p1
p1
| Version | Author | Date |
|---|---|---|
| 72ac736 | Jovana Maksimovic | 2025-09-10 |
Hs.c2.all <- convert_gmt_to_list(here("data/c2.all.v2024.1.Hs.entrez.gmt"))
Hs.h.all <- convert_gmt_to_list(here("data/h.all.v2024.1.Hs.entrez.gmt"))
Hs.c5.all <- convert_gmt_to_list(here("data/c5.all.v2024.1.Hs.entrez.gmt"))
fibrosis <- create_custom_gene_lists_from_file(here("data/fibrosis_gene_sets.csv"))
# add fibrosis sets from REACTOME and WIKIPATHWAYS
fibrosis <- c(lapply(fibrosis, function(l) l[!is.na(l)]),
Hs.c2.all[str_detect(names(Hs.c2.all), "FIBROSIS")])
gene_sets_list <- list(HALLMARK = Hs.h.all,
GO = Hs.c5.all,
REACTOME = Hs.c2.all[str_detect(names(Hs.c2.all), "REACTOME")],
WP = Hs.c2.all[str_detect(names(Hs.c2.all), "^WP")],
FIBROSIS = fibrosis)num <- 10
hallmark <- rbind(read_csv(file = here("output",
"dge_analysis",
"macrophages",
"ORA.HALLMARK.CF.IVAvNON_CF.CTRL.csv")) %>%
slice_head(n = num) %>%
mutate(contrast = "CF.IVAvNON_CF.CTRL",
Rank = 1:min(num, n())),
read_csv(file = here("output",
"dge_analysis",
"macrophages",
"ORA.HALLMARK.CF.NO_MODvNON_CF.CTRL.csv")) %>%
slice_head(n = num) %>%
mutate(contrast = "CF.NO_MODvNON_CF.CTRL",
Rank = 1:min(num, n()))) %>%
mutate(dups = duplicated(Set) | duplicated(Set, fromLast = TRUE)) %>%
mutate(Set = str_wrap(str_replace_all(Set, "_", " "), width = 75),
Set = str_remove_all(Set, "GO |REACTOME |HALLMARK |WP "))
pal <- c(paletteer::paletteer_d("RColorBrewer::Set1")[2:1], "grey")

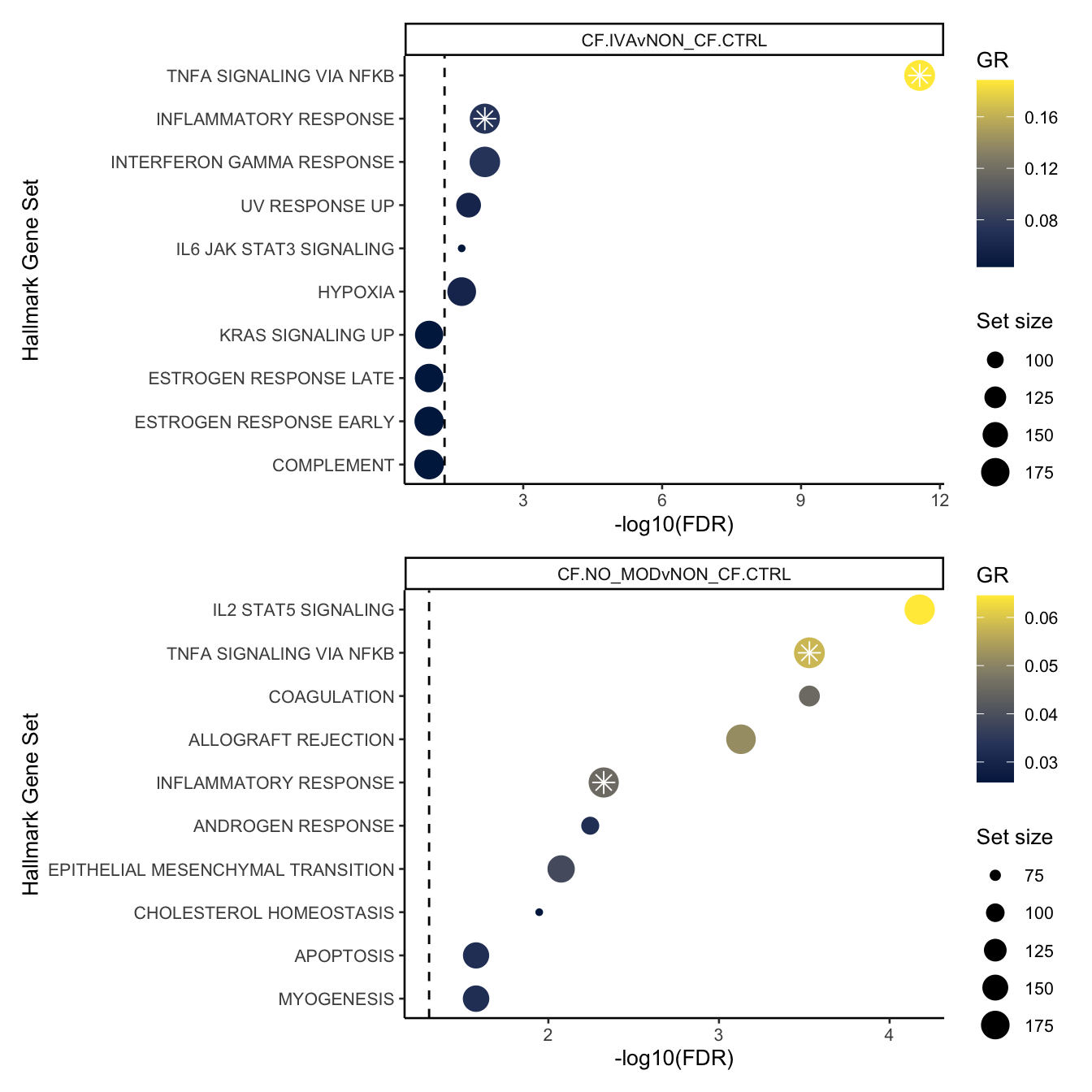

sub <- 1:10
hallmark[sub, ]%>%
ggplot(aes(x = -log10(FDR), y = -Rank, colour = GR)) +
geom_point(aes(size = N)) +
geom_point(shape = 8, colour = "white", size = 3,
data = hallmark[sub,][hallmark$dups[sub],],
aes(x = -log10(FDR), y = -Rank)) +
geom_vline(xintercept = -log10(0.05),
linetype = "dashed") +
facet_wrap(~contrast) +
scale_colour_viridis_c(option = "cividis") +
scale_y_continuous(breaks = -hallmark$Rank[sub],
labels = hallmark$Set[sub]) +
labs(y = "Hallmark Gene Set", size = "Set size") +
theme_classic(base_size = 10) -> p2
sub <- 11:20
hallmark[sub, ]%>%
ggplot(aes(x = -log10(FDR), y = -Rank, colour = GR)) +
geom_point(aes(size = N)) +
geom_point(shape = 8, colour = "white", size = 3,
data = hallmark[sub,][hallmark$dups[sub],],
aes(x = -log10(FDR), y = -Rank)) +
geom_vline(xintercept = -log10(0.05),
linetype = "dashed") +
facet_wrap(~contrast) +
scale_colour_viridis_c(option = "cividis") +
scale_y_continuous(breaks = -hallmark$Rank[sub],
labels = hallmark$Set[sub]) +
labs(y = "Hallmark Gene Set", size = "Set size") +
theme_classic(base_size = 10) -> p3
p2 / p3
| Version | Author | Date |
|---|---|---|
| 72ac736 | Jovana Maksimovic | 2025-09-10 |

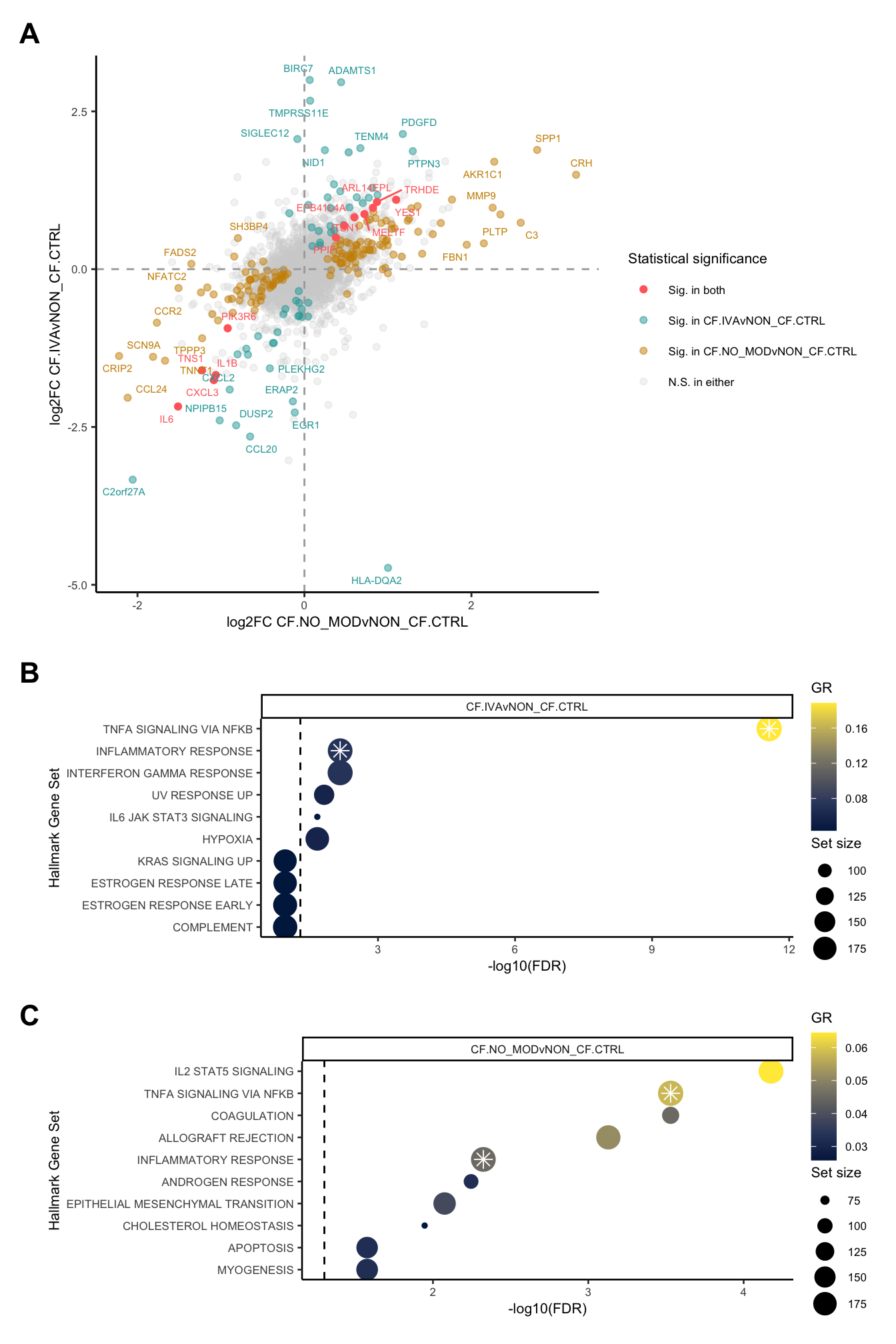

Supplementary Figure 6
layout <- "
AAA
AAA
BBB
CCC
"
wrap_elements(p1 + theme(text = element_text(size = 8))) +
wrap_elements(p2 + theme(text = element_text(size = 8),
legend.margin = margin(-0.5,0,0,0, unit="lines"),
legend.key.size = unit(1, "lines"))) +
wrap_elements(p3 + theme(text = element_text(size = 8),
legend.margin = margin(-0.5,0,0,0, unit="lines"),
legend.key.size = unit(1, "lines"))) +
plot_layout(design = layout) +
plot_annotation(tag_levels = "A") &
theme(plot.tag = element_text(size = 16,
face = "bold",
family = "arial"))
| Version | Author | Date |
|---|---|---|
| 72ac736 | Jovana Maksimovic | 2025-09-10 |
Session info
sessionInfo()R version 4.3.3 (2024-02-29)
Platform: aarch64-apple-darwin20 (64-bit)
Running under: macOS 15.5
Matrix products: default
BLAS: /Library/Frameworks/R.framework/Versions/4.3-arm64/Resources/lib/libRblas.0.dylib
LAPACK: /Library/Frameworks/R.framework/Versions/4.3-arm64/Resources/lib/libRlapack.dylib; LAPACK version 3.11.0
locale:
[1] en_US.UTF-8/en_US.UTF-8/en_US.UTF-8/C/en_US.UTF-8/en_US.UTF-8
time zone: Australia/Melbourne
tzcode source: internal
attached base packages:
[1] stats4 stats graphics grDevices datasets utils methods
[8] base
other attached packages:
[1] gt_1.0.0 readxl_1.4.3
[3] ggh4x_0.3.1 dsb_1.0.3
[5] paletteer_1.6.0 tidyHeatmap_1.8.1
[7] speckle_1.2.0 glue_1.8.0
[9] org.Hs.eg.db_3.18.0 AnnotationDbi_1.64.1
[11] patchwork_1.3.1 clustree_0.5.1
[13] ggraph_2.2.0 here_1.0.1
[15] dittoSeq_1.14.2 glmGamPoi_1.14.3
[17] SeuratObject_4.1.4 Seurat_4.4.0
[19] lubridate_1.9.3 forcats_1.0.0
[21] stringr_1.5.1 dplyr_1.1.4
[23] purrr_1.0.2 readr_2.1.5
[25] tidyr_1.3.1 tibble_3.2.1
[27] ggplot2_3.5.2 tidyverse_2.0.0
[29] edgeR_4.0.15 limma_3.58.1
[31] SingleCellExperiment_1.24.0 SummarizedExperiment_1.32.0
[33] Biobase_2.62.0 GenomicRanges_1.54.1
[35] GenomeInfoDb_1.38.6 IRanges_2.36.0
[37] S4Vectors_0.40.2 BiocGenerics_0.48.1
[39] MatrixGenerics_1.14.0 matrixStats_1.2.0
[41] workflowr_1.7.1
loaded via a namespace (and not attached):
[1] fs_1.6.6 spatstat.sparse_3.0-3 bitops_1.0-7
[4] httr_1.4.7 RColorBrewer_1.1-3 doParallel_1.0.17
[7] tools_4.3.3 sctransform_0.4.1 utf8_1.2.4
[10] R6_2.5.1 lazyeval_0.2.2 uwot_0.1.16
[13] GetoptLong_1.0.5 withr_3.0.0 sp_2.1-3
[16] gridExtra_2.3 progressr_0.14.0 cli_3.6.5
[19] spatstat.explore_3.2-6 labeling_0.4.3 prismatic_1.1.1
[22] sass_0.4.10 spatstat.data_3.0-4 ggridges_0.5.6
[25] pbapply_1.7-2 parallelly_1.37.0 rstudioapi_0.15.0
[28] RSQLite_2.3.5 generics_0.1.3 shape_1.4.6
[31] vroom_1.6.5 ica_1.0-3 spatstat.random_3.2-2
[34] dendextend_1.17.1 Matrix_1.6-5 fansi_1.0.6
[37] abind_1.4-5 lifecycle_1.0.4 whisker_0.4.1
[40] yaml_2.3.8 SparseArray_1.2.4 Rtsne_0.17
[43] grid_4.3.3 blob_1.2.4 promises_1.2.1
[46] crayon_1.5.2 miniUI_0.1.1.1 lattice_0.22-5
[49] cowplot_1.1.3 KEGGREST_1.42.0 pillar_1.9.0
[52] knitr_1.50 ComplexHeatmap_2.18.0 rjson_0.2.21
[55] future.apply_1.11.1 codetools_0.2-19 leiden_0.4.3.1
[58] getPass_0.2-4 data.table_1.15.0 vctrs_0.6.5
[61] png_0.1-8 cellranger_1.1.0 gtable_0.3.6
[64] rematch2_2.1.2 cachem_1.0.8 xfun_0.52
[67] S4Arrays_1.2.0 mime_0.12 tidygraph_1.3.1
[70] survival_3.5-8 pheatmap_1.0.12 iterators_1.0.14
[73] statmod_1.5.0 ellipsis_0.3.2 fitdistrplus_1.1-11
[76] ROCR_1.0-11 nlme_3.1-164 bit64_4.0.5
[79] RcppAnnoy_0.0.22 rprojroot_2.0.4 bslib_0.6.1
[82] irlba_2.3.5.1 KernSmooth_2.23-22 colorspace_2.1-0
[85] DBI_1.2.1 tidyselect_1.2.1 processx_3.8.3
[88] bit_4.0.5 compiler_4.3.3 git2r_0.33.0
[91] xml2_1.3.6 DelayedArray_0.28.0 plotly_4.10.4
[94] scales_1.3.0 lmtest_0.9-40 callr_3.7.3
[97] digest_0.6.34 goftest_1.2-3 spatstat.utils_3.0-4
[100] rmarkdown_2.29 XVector_0.42.0 htmltools_0.5.8.1
[103] pkgconfig_2.0.3 fastmap_1.1.1 rlang_1.1.6
[106] GlobalOptions_0.1.2 htmlwidgets_1.6.4 shiny_1.8.0
[109] farver_2.1.1 jquerylib_0.1.4 zoo_1.8-12
[112] jsonlite_1.8.8 mclust_6.1 RCurl_1.98-1.14
[115] magrittr_2.0.3 GenomeInfoDbData_1.2.11 munsell_0.5.0
[118] Rcpp_1.0.12 viridis_0.6.5 reticulate_1.42.0
[121] stringi_1.8.3 zlibbioc_1.48.0 MASS_7.3-60.0.1
[124] plyr_1.8.9 parallel_4.3.3 listenv_0.9.1
[127] ggrepel_0.9.5 deldir_2.0-2 Biostrings_2.70.2
[130] graphlayouts_1.1.0 splines_4.3.3 tensor_1.5
[133] hms_1.1.3 circlize_0.4.15 locfit_1.5-9.8
[136] ps_1.7.6 igraph_2.0.1.1 spatstat.geom_3.2-8
[139] reshape2_1.4.4 evaluate_0.23 renv_1.1.4
[142] BiocManager_1.30.22 tzdb_0.4.0 foreach_1.5.2
[145] tweenr_2.0.3 httpuv_1.6.14 RANN_2.6.1
[148] polyclip_1.10-6 future_1.33.1 clue_0.3-65
[151] scattermore_1.2 ggforce_0.4.2 xtable_1.8-4
[154] later_1.3.2 viridisLite_0.4.2 memoise_2.0.1
[157] cluster_2.1.6 timechange_0.3.0 globals_0.16.2
